DCS 50

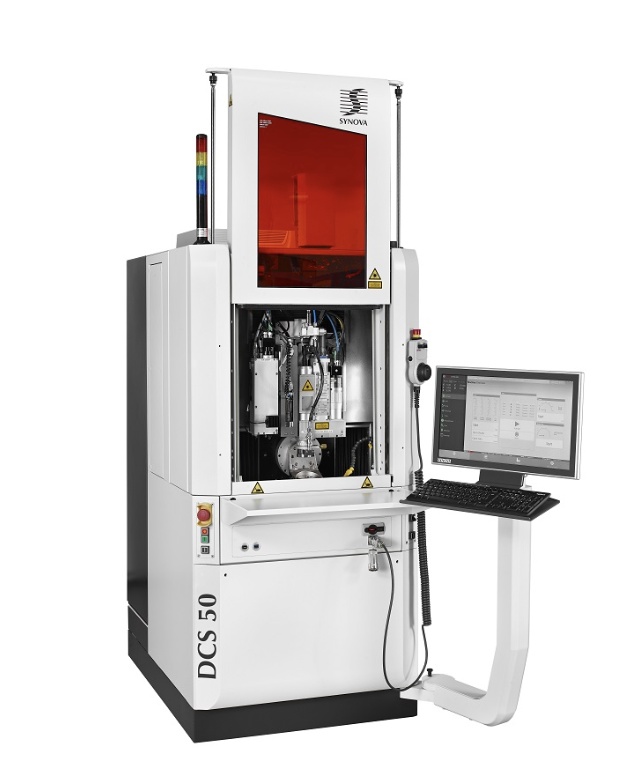

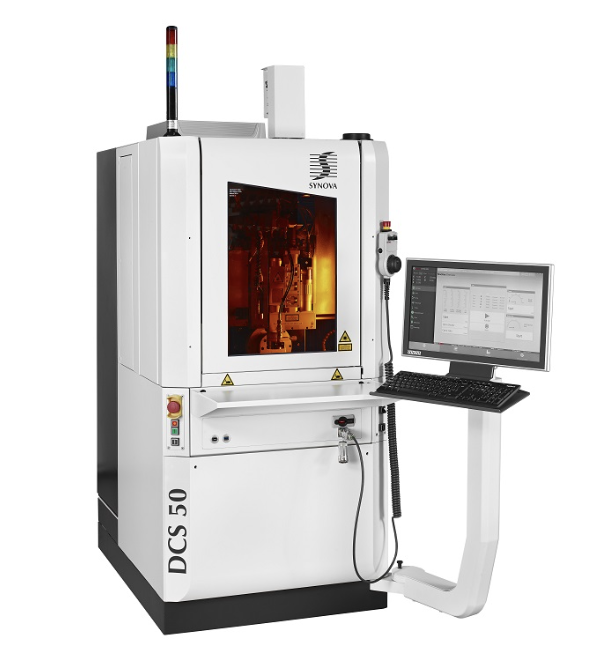

The DCS 50 is Synova’s most compact diamond machining system. The 3-axis machine is designed for cutting pointers (0.1 to 1.5 cts.). The DCS 50 with two additional rotary axes also allows high-precision coning, blocking and fancy shaping.

The machine uses linear motor driven X-, Y- and Z-axes (DCS 50-3) with additional B and C rotary axes enabling accurate diamond machining such as blocking and shaping (DCS 50-5).

The state-of-the-art CNC machine system offers a high-power green laser, a compact high-pressure water pump with an ultra-pure water unit, a touch-screen control panel and a vision system with motorized zoom.

Materials

Diamond materials:

Rough diamonds
Laboratory grown diamonds (CVD, HPHT)

Operations

3-axis machine: Sawing, slicing

5-axis machine: Sawing, pie sawing, slicing, drilling, fancy and round bruting, coning, blocking/ faceting

Key Benefits

Easy
- No focus control necessary due to long working distance
- No blackening, no opening, no double sawing needed
- Very little post treatment required
Profitable
- Minimal weight loss and low risk of breakage
- Fast cutting time and easy processing
- Diamond sawing in mass production
Straight and Smooth
- Smooth cutting surfaces and sharp edges
- Cylindrical beam resulting in perfectly parallel kerfs (no V-shape)
- Virtually no heat impact thanks to the water jet cooling capability

Typical Application Examples

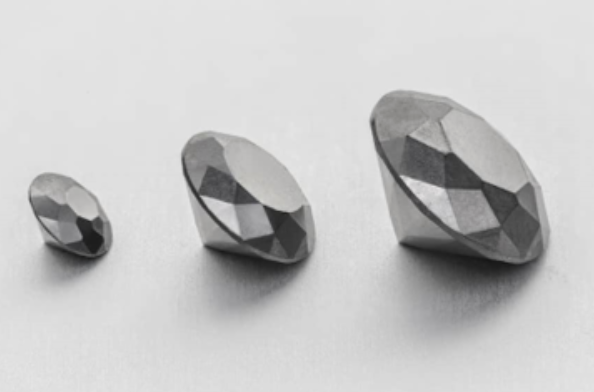

Round brilliant

Natural diamond

Fancy shape

Natural diamond

Pie cutting

Natural diamond

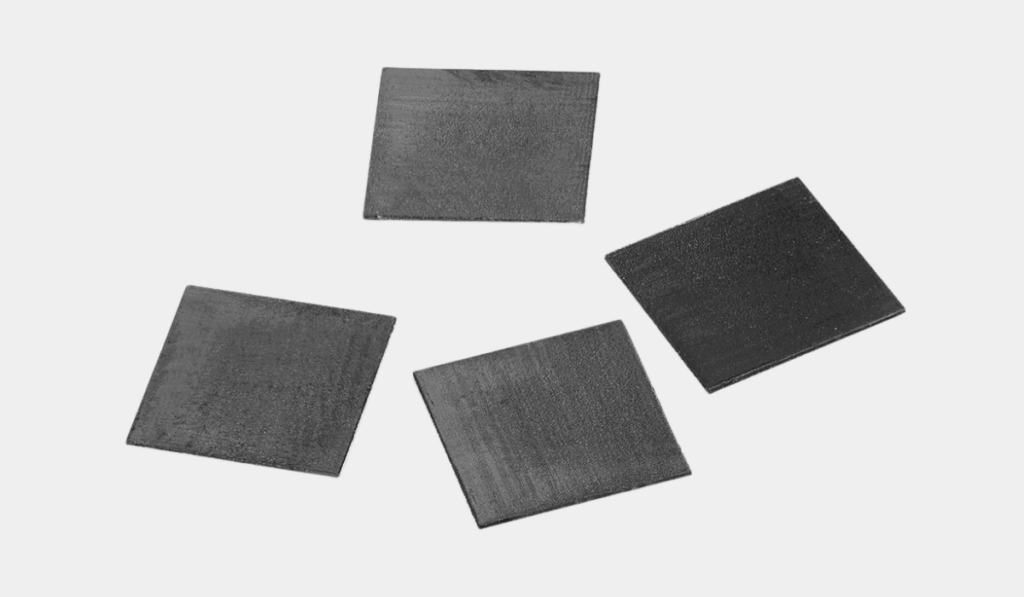

Slicing

CVD lab-grown diamond

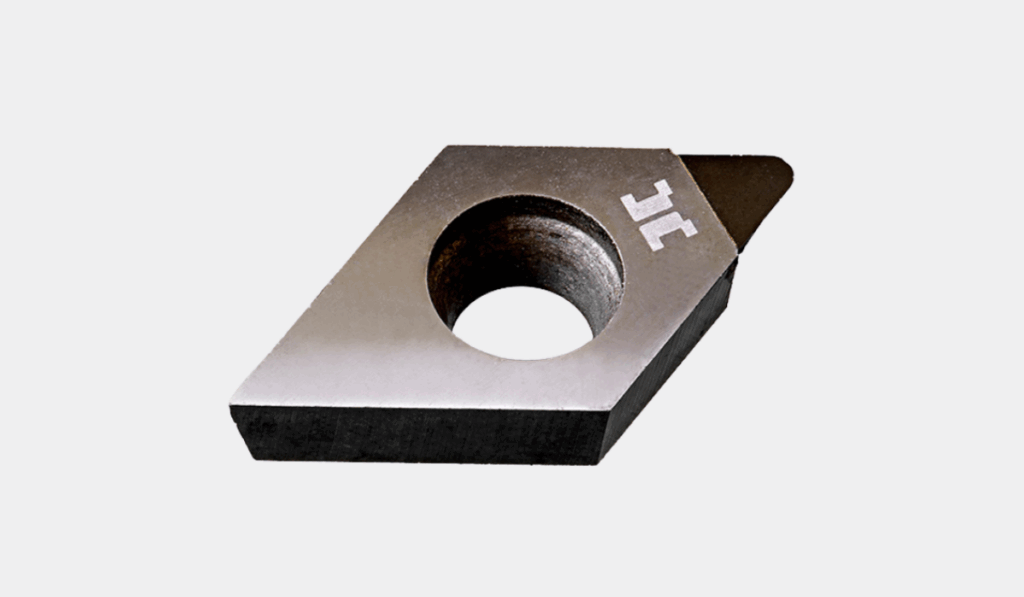

Tool insert

CVD lab-grown diamond

General Specifications

Version		DCS 50-3	DCS 50-5
Working volume	mm (W x D x H)	175 x 50 x 50	50 x 50 x 50
Accuracy	µm	+/- 3	+/- 3
Repeatablility	µm	+/- 1	+/- 1
Number of axes		3-axis	5-axis
Laser Type		Diode pumped solid state Nd: YAG, pulsed	Diode pumped solid state Nd: YAG, pulsed
Wavelength	nm	532	532
Dimensions machine	mm (W x D x H)	800 x 1200 x 1650	800 x 1200 x 1650
Dimensions cabinet	mm (W x D x H)	700 x 2300 x 1600	700 x 2300 x 1600
