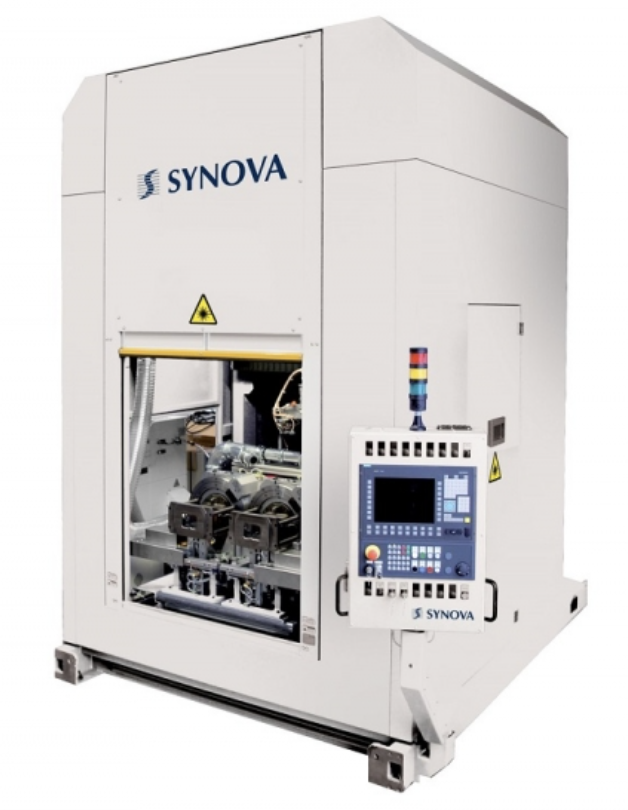

The LCS 1005 integrates Synova’s state-of-the-art Laser MicroJet® (LMJ) technology with a wide machine platform and table for large work pieces. This 5-axis system with optional C2 rotary axis allows high-precision 2D and 3D machining of metals and ceramics, free of heat affected zone (HAZ) and burrs.

The LCS 1005 with five simultaneous axes is specifically designed for 3D machining needs and drilling of cooling holes in hot section components of industrial gas turbines and jet engines. A wide range of materials such as superalloys with thermal barrier coating (TBC) can be processed in one single step, without cracks or delamination in the ceramic coating and extremely low recast in the metal structure.

Due to the large door, workpieces are easily loaded into the machine, either manually or by robot. Custom automation is available (e.g. conveyor belt, robotic arm).

Materials

Diamond materials: Polycrystalline CBN (PcBN), polycrystalline diamond (PCD), single crystalline diamond (SCD), CVD diamond, tungsten carbide (WC)

Metals and alloys: Superalloys, stainless steel, aluminium, copper, nickel, titanium etc.

Ceramics: Ceramic-matrix composites (CMCs), silicon carbide (SiC), silicon nitride (SiN), zirconia (ZrO2), HTCC/LTCC, aluminium nitride (AlN), aluminium oxide (Al2O3)

Operations

3D cutting and shaping, drilling, slotting, grooving, trenching, milling, slicing, edge grinding, engraving, profiling

Key Benefits

  • Fast and Accurate
    • High mechanical precision with a tolerance of  +/- 10 μm (very small kerf width down to 60 μm)
    • High aspect ratio in hole-drilling (up to 1:20)
    • Fast ablation of shaped holes (10-20 sec.)
  • Cool and Clean
    • Virtually no heat impact thanks to water jet cooling capability
    • Clean surfaces, no depositions or burrs
    • Cylindrical beam resulting in perfectly parallel kerfs and drilled holes
  • User Friendly
    • No laser focusing or distance control required
    • No need of resin or protective layers
    • No post treatment necessary

General Specifications



LCS 1005
Working volume 1000 x 1200 x 750
Accuracy +/- 10 µm
Repeatability +/- 1 µm
Laser type Diode-pumped solid-state laser
Laser power 50 W – 350 W
Number of axes 5
Machine dimensions W 2450 mm x D 3450 mm x H 3500 mm
Machine weight approx. 9000 kg
Utilities cabinet dimensions W 1800 mm x D 700 mm x H 1600 mm

Facility information

LCS 1005
Ambient temperature min 18 °C – max 28 °C, recommended  20 °C ± 2 °C
Ambient air humidity < 90%, non-condensing
Electricity input 3x 400 VAC +6% / -10%, 3-phases 50/60 Hz ± 1%
Compressed air pressure requirement 5 – 6 bar
Water quality requirement City water
Water pressure requirement 2.5 – 4 bar
Drain flow rate < 2 l/min
