LCS 305

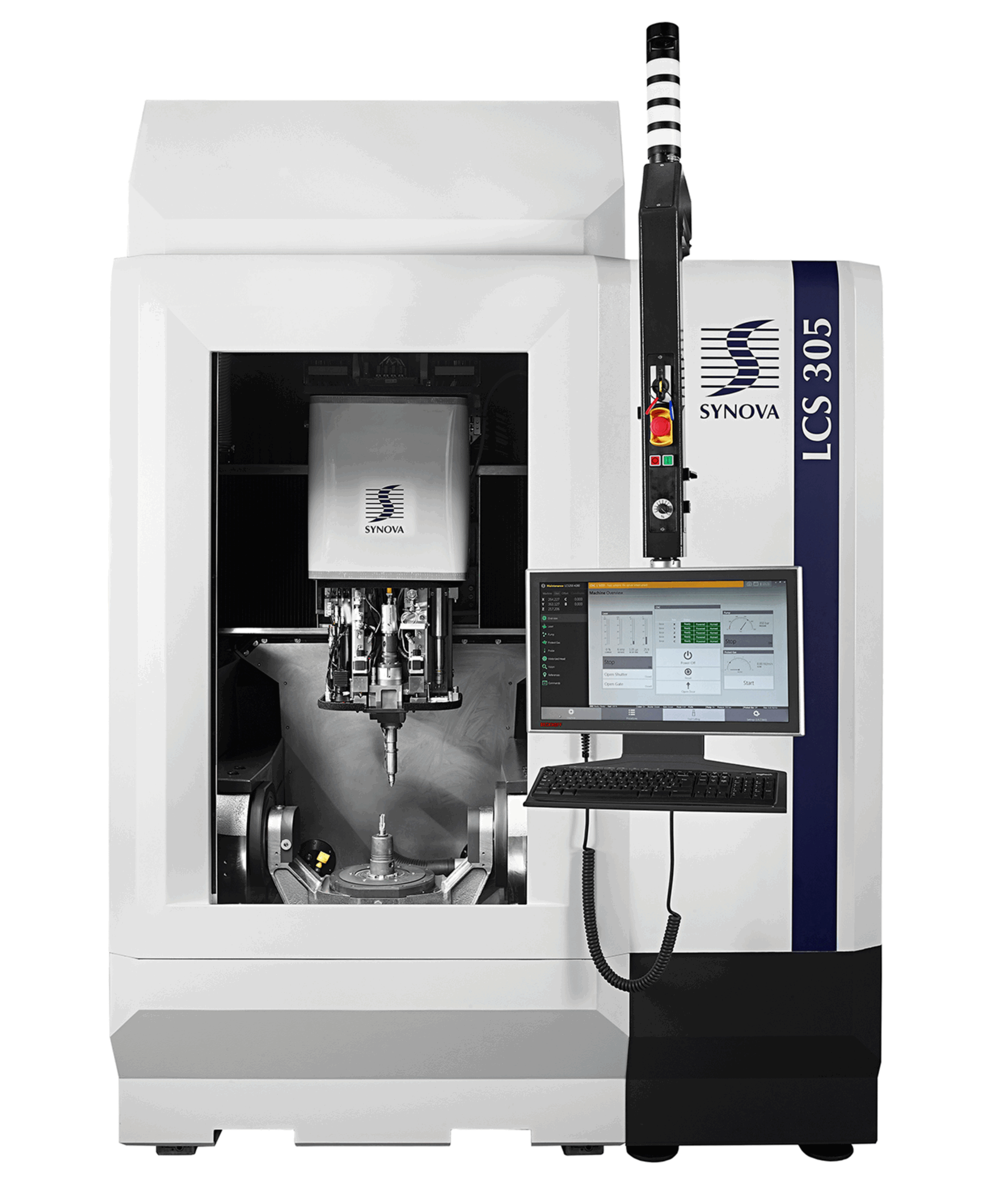

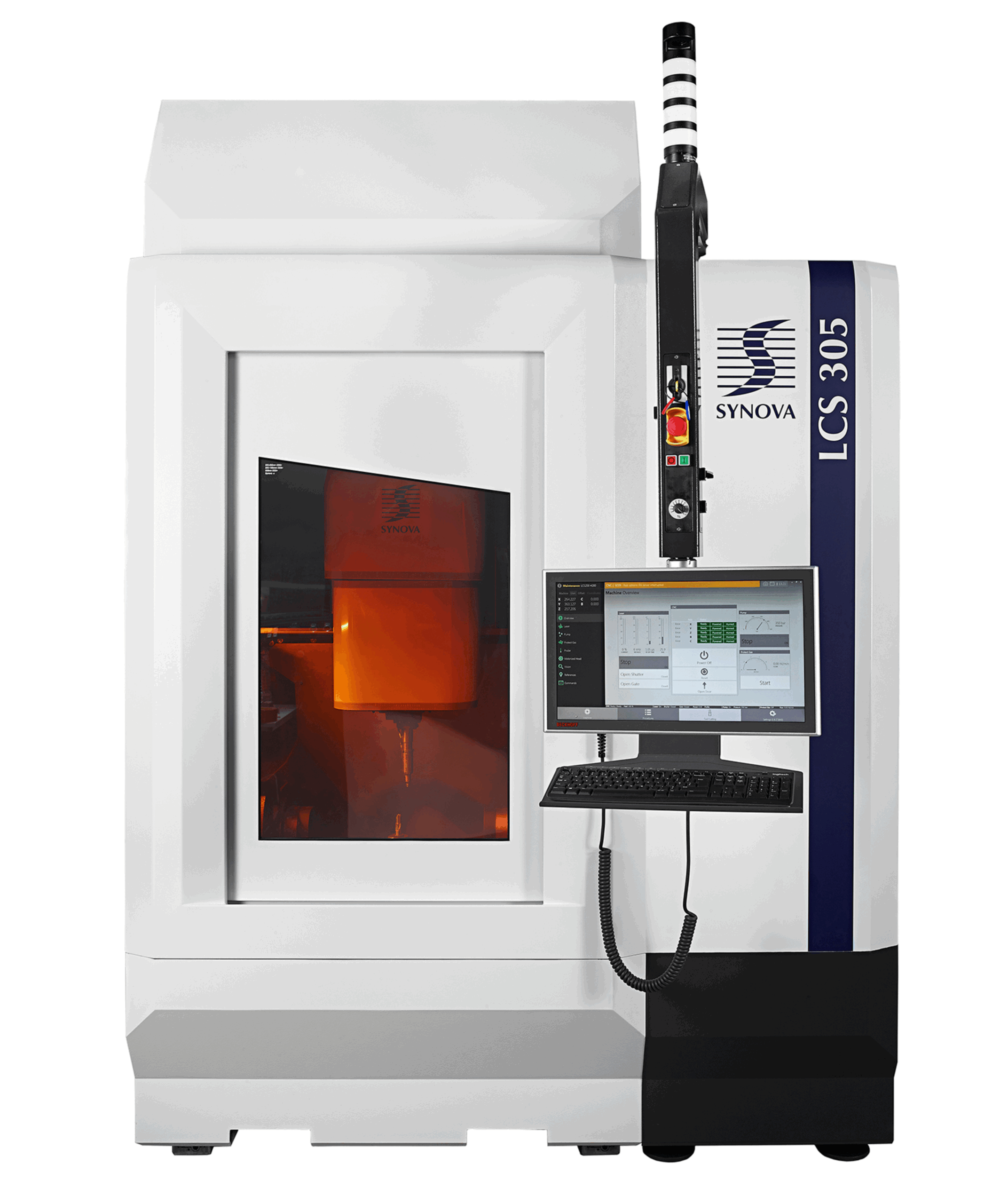

The LCS 305 with 5 axes is a CNC machine specifically developed for the automatic production of larger and multi-tooth diamond cutting tools. This advanced system with five synchronous axes is characterized by a particularly intelligent machine concept and highly dynamic axes for maximum precision and speed.

The system disposes of consistent temperature control with water-cooled linear and torque motors (+/- 0.1°C) and a mineral casting machine bed for more stability and reduced vibrations.

A fully automatic offset calibration system integrates laser-nozzle alignment, automatic jet angle correction, laser power meter and touch probe.

Tools can be exchanged with a very high accuracy thanks to the HSK 63 tool holder.

Materials

Diamond materials: Polycrystalline CBN (PcBN), polycrystalline diamond (PCD), single crystalline diamond (SCD), chemical-vapor-deposition (CVD) diamond, natural diamond (ND), tungsten carbide (WC)

Metals and alloys: Superalloys, stainless steel, aluminium, copper, titanium, nickel etc.

Ceramics: Ceramic-matrix composites (CMCs), silicon carbide (SiC), silicon nitride (SiN), zirconia (ZrO2), HTCC/LTCC (high temperature and low temperature co-fired ceramic), aluminum nitride (AlN), aluminum oxide (Al2O3)

Operations

3D cutting, shaping, drilling, slotting, grooving, trenching, milling, slicing, edge grinding (K-land edges, single or multiple clearance angles) engraving, profiling

Key Benefits

Sharp & Smooth
- Smooth cutting surfaces and sharp edges (Ra as low as 0.2 μm)
- Cylindrical beam resulting in parallel kerfs (no V-shape)
- Virtually no heat impact thanks to water jet cooling capability
Fast and Accurate
- Finnish cutting of 1.6 mm PCD and cemented carbide in 3 mm/min.
- High mechanical precision with a tolerance of +/- 5 μm
- Very small kerf width (down to 30 μm)
Clean and Easy
- Clean surfaces, no depositions or burrs
- No or very little post treatment required
- No laser focusing or distance control required

Typical Application Examples

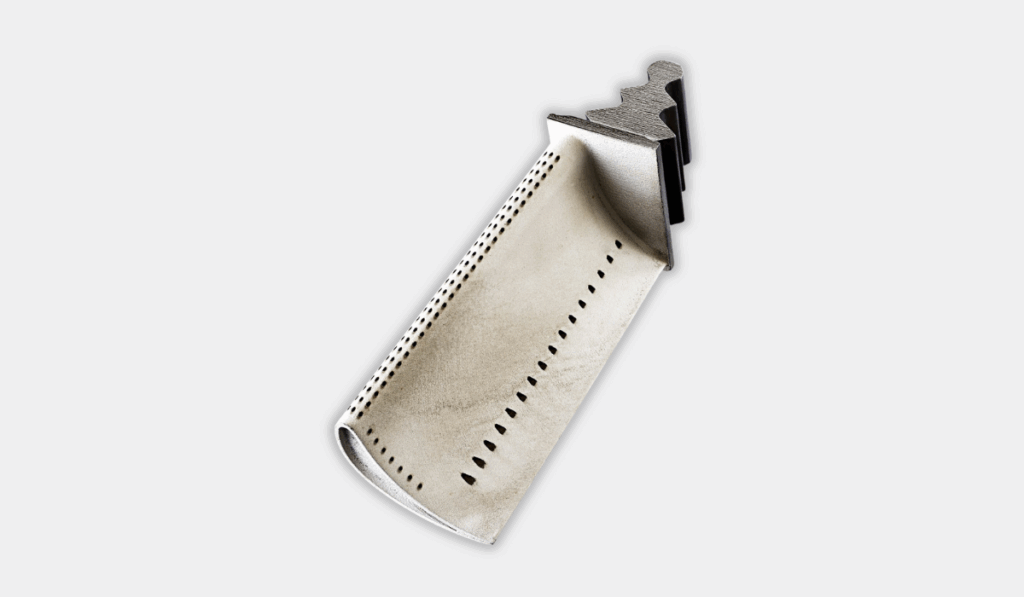

Diffusor holes

Coated superalloy

Rotation tool

PCD

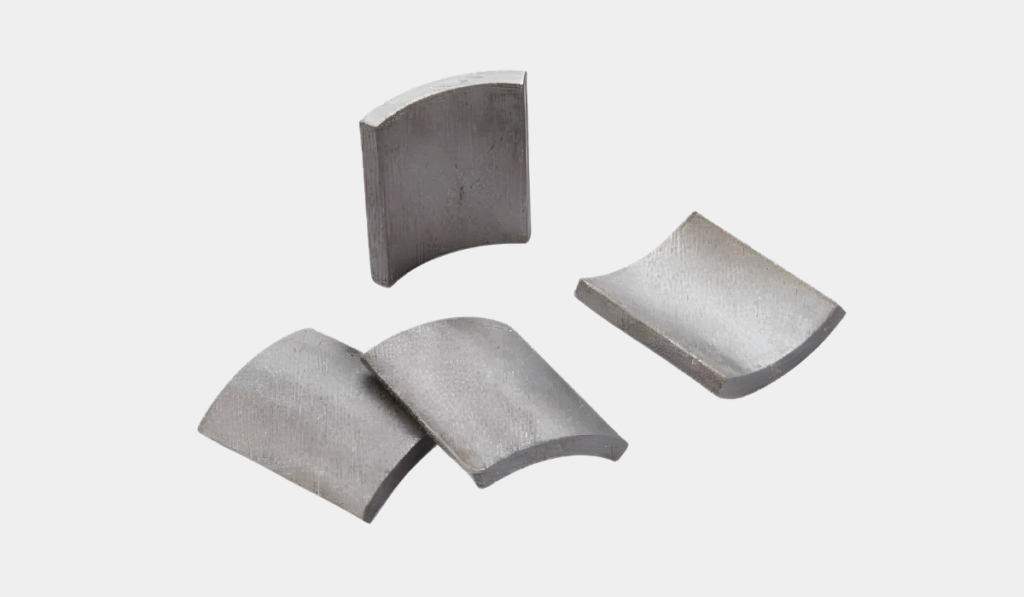

Permanent magnets

NdFeB

Tool insert

PCD

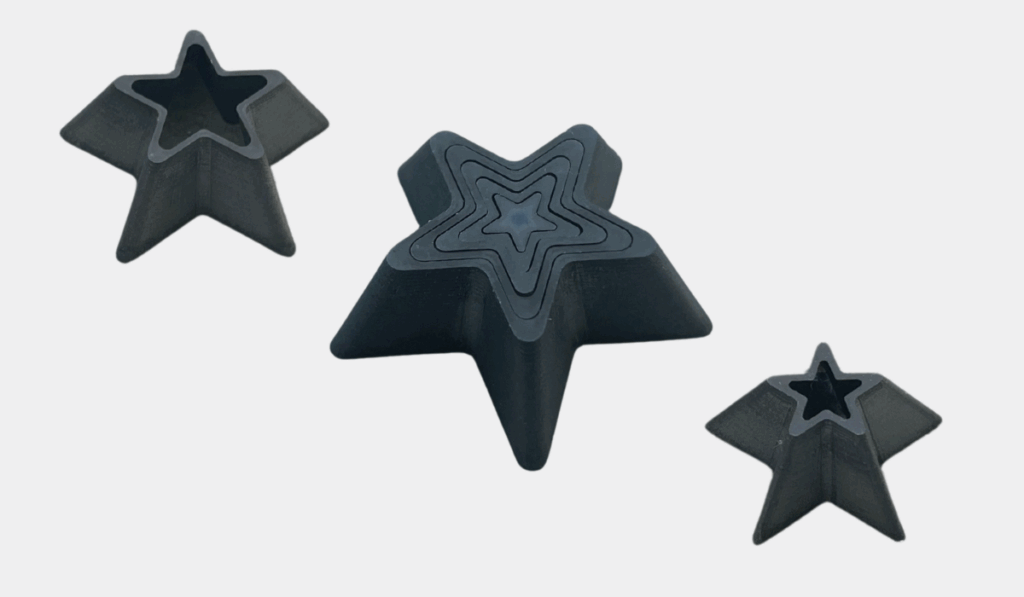

Custom sample

SiC

General Specifications

	LCS 305
X, Y, Z axis travel range	500 mm x 380 mm x 380 mm
A axis travel range	+135° to -20°
C axis travel range	360° (continuous)
Positioning accuracy of linear axes	+/- 5 µm
Positioning accuracy of rotary axes
Laser type	Diode-pumped solid-state laser
Laser power	50 W – 350 W
Number of axes	5
Machine dimensions	W 1800 mm x D 2000 mm x H 2600 mm
Machine weight	approx. 6000 kg

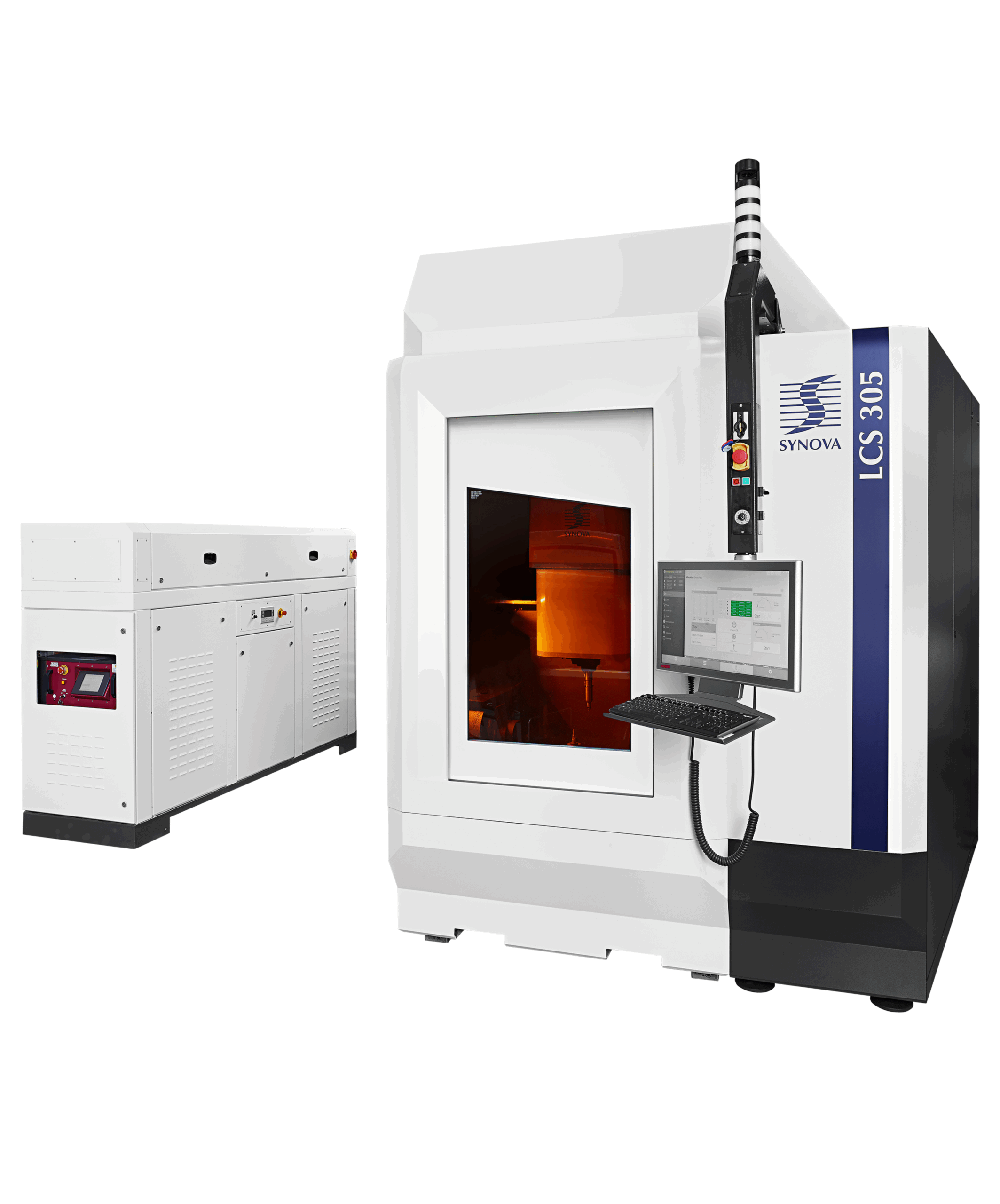

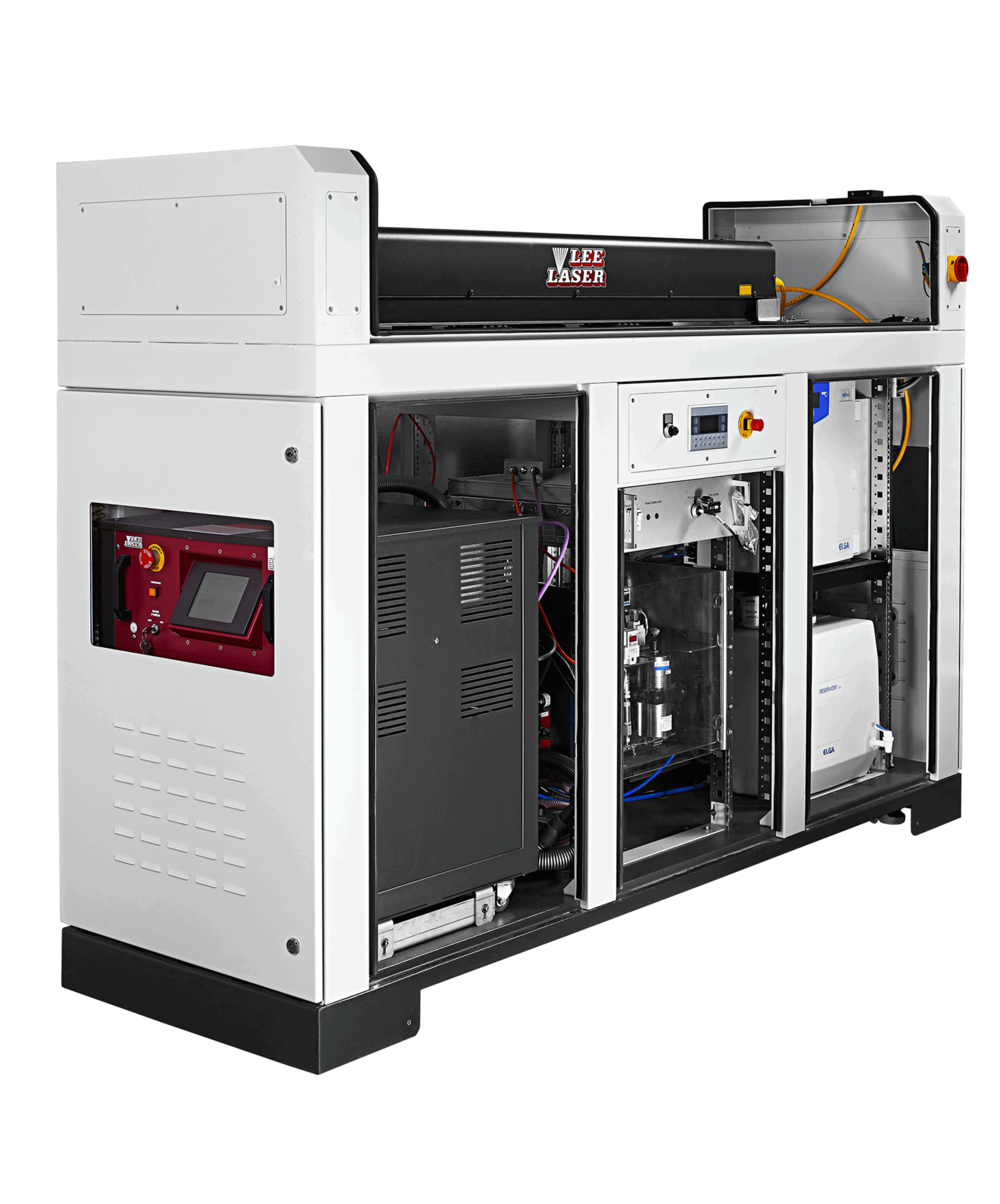

Utilities cabinet dimensions	W 1800 mm x D 700 mm x H 1600 mm

Facility information

	LCS 305
Ambient temperature	min 18 °C – max 28 °C, recommended 20 °C ± 2 °C
Ambient air humidity	< 90%, non-condensing
Electricity input	3x 400 VAC +6% / -10%, 3-phases 50/60 Hz ± 1%
Compressed air pressure requirement	5 – 6 bar
Water quality requirement	City water
Water pressure requirement	2.5 – 4 bar
Drain flow rate	< 2 l/min
